B7RWWMS-2 1/2 X 1-316L-PM

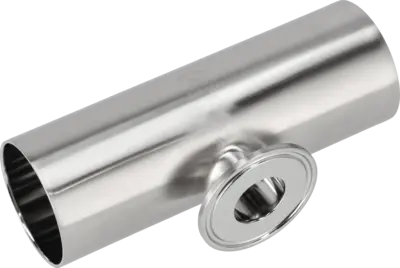

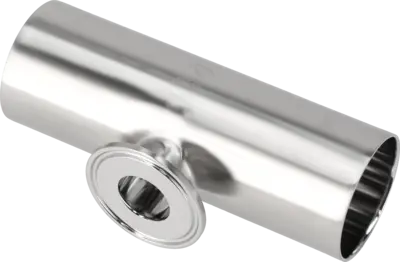

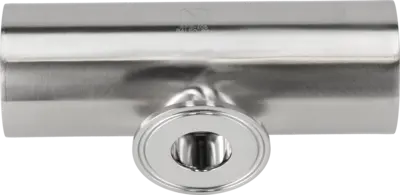

B7RWWMS-2 1/2 X 1-316L-PM - BPE S/O RED T WXTC 15RAEP SF4
Produsent:Alfa Laval
Artikkelnummer: 9634002376
På lager:
Den grønne markøren indikerer at produktet vanligvis er på lager. Den gule markøren indikerer at produktet vanligvis har litt lengre leveringstid
Leveringstid:4-5 dager
  • Serie: Tees
  • Produktmodell: Tri-Clover BPE Reducing Tees Short
  • Størrelse: 2.5"
  • Sekundær størrelse: 1"
  • Materiale: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Bli Tilkoblingstype: Weld and Weld and Short Reduced Tri-Clamp
  • Standard: ASME BPE
  • Design: B7RWWMS
  • Produktvekt: 1.16
Pris:
Logg inn for å se prisen

MVA inkludert

A: 79.40
B: 47.60
OD/ID xt: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2/ID2 x t2: 25.40/22.10 x 1.65
