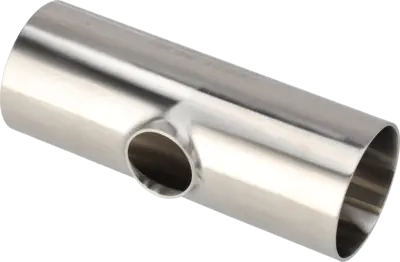

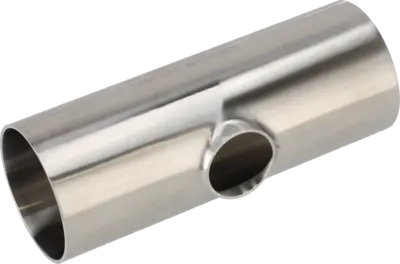

TEE RTK DN65/25 HSF3 1.4307

TEE RTK DN65/25 HSF3 1.4307 - DIN 11852
Produsent:Alfa Laval
Artikkelnummer: 9615247207
På lager:
Den grønne markøren indikerer at produktet vanligvis er på lager. Den gule markøren indikerer at produktet vanligvis har litt lengre leveringstid
Leveringstid:4-5 dager
  • Serie: Tees
  • Produktmodell: DIN EN 10357-A Reducing Tees Short EN 10374-A
  • Størrelse: DN65
  • Sekundær størrelse: DN25
  • Materiale: 1.4307 (304L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Bli Tilkoblingstype: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: Reduced Tee Short, RTK
  • Produktvekt: 0.55
Pris:
Logg inn for å se prisen

MVA inkludert

L1 (mm): 80
L2 (mm): 37
OD/ID xt: 70/66 x 2
OD1/ID1 x t1: 70/66 x 2
OD2/ID2 x t2: 29/26 x 1.50
