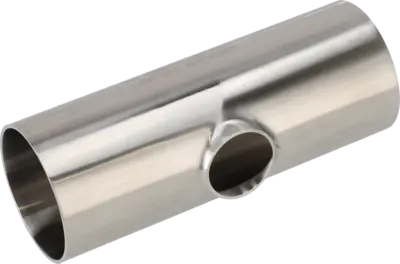

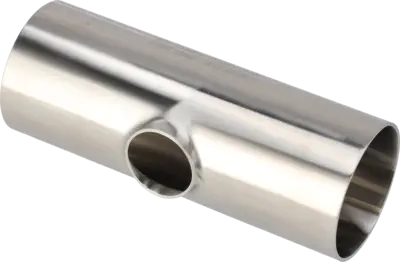

TEE RTK DN200/80 HSF3 1.4307

TEE RTK DN200/80 HSF3 1.4307 - DIN 11852
Produsent:Alfa Laval
Artikkelnummer: 9615247263
På lager:
Den grønne markøren indikerer at produktet vanligvis er på lager. Den gule markøren indikerer at produktet vanligvis har litt lengre leveringstid
Leveringstid:4-5 dager
  • Serie: Tees
  • Produktmodell: DIN EN 10357-A Reducing Tees Short EN 10374-A
  • Størrelse: DN200
  • Sekundær størrelse: DN80
  • Materiale: 1.4307 (304L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Bli Tilkoblingstype: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: Reduced Tee Short, RTK
  • Produktvekt: 3.7
Pris:
Logg inn for å se prisen

MVA inkludert

L1 (mm): 300
L2 (mm): 108
OD/ID xt: 204/200 x 2
OD1/ID1 x t1: 204/200 x 2
OD2/ID2 x t2: 85/81 x 2
