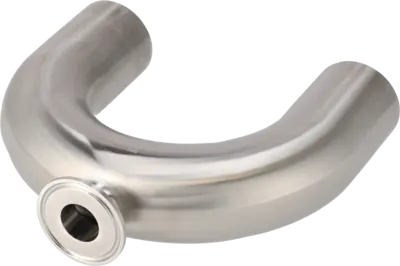

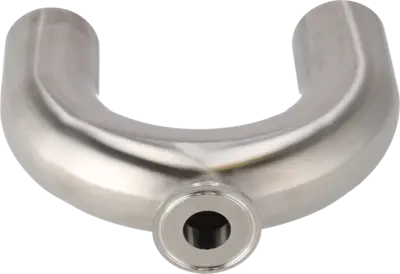

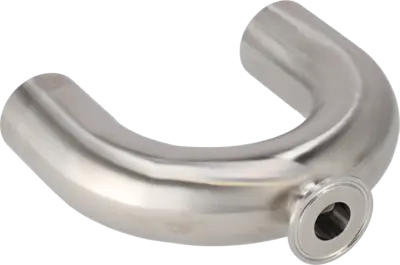

B2UMPBOA-2X3/4-316L-PL

B2UMPBOA-2X3/4-316L-PL - BPE USE POINT 20RA SF1
Manufacturer:Alfa Laval
Item number: 9634037407
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Range: Bends
  • Product Model: Tri-Clover BPE Use-Point
  • Size: 2"
  • Second Size: 0.75"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Tri-Clamp and Weld
  • Standard: UltraPure
  • Design: B2UMPBOA
  • Item Weight: 0.65
Price:
Login to view price

Tax included

A: 127.00
B: 152.40
C: 168.30
OD/ID x t: 50.80/47.50 x 1.65
OD1/ID1 x t1: 50.80/47.50 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
