B7RMP-2 1/2 X 2-316L-PL

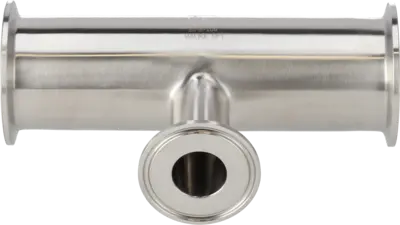

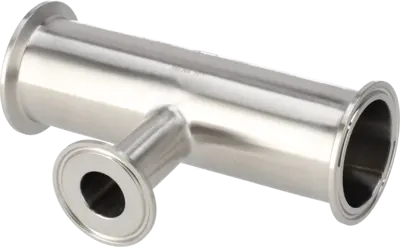

B7RMP-2 1/2 X 2-316L-PL - BPE REDUCING TEE TC 20RA/POL SF1
Manufacturer:Alfa Laval
Item number: 9634003657
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 2.5"
  • Second Size: 2"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMP
  • Item Weight: 0.72
Price:
Login to view price

Tax included

A: 92.10
B: 85.70
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2/ID2 x t2: 50.80/47.50 x 1.65
