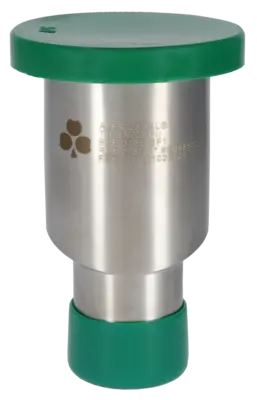

B32MS-1 X 3/4-316L-PL

B32MS-1 X 3/4-316L-PL - BPE EccRed-TCxWeld 20Ra, SF1
Manufacturer:Alfa Laval
Item number: 9614207802
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:On request
  • Range: Reducers
  • Product Model: Tri-Clover BPE Reducers Eccentric
  • Size: 1"
  • Second Size: 0.75"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B32MS
  • Item Weight: 0.31
Price:
Login to view price

Tax included

A: 66.70
OD/ID x t: 25.40/22.10 x 1.65
OD1/ID1 x t1: 25.40/22.10 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
