B2CMW-2-316L-PM

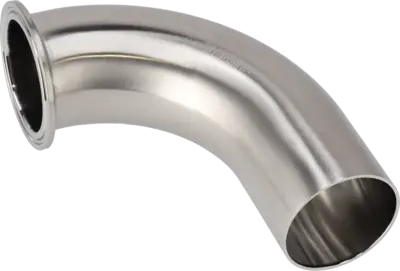

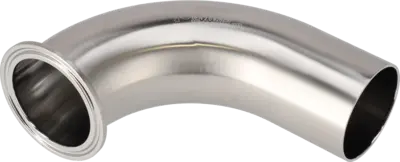

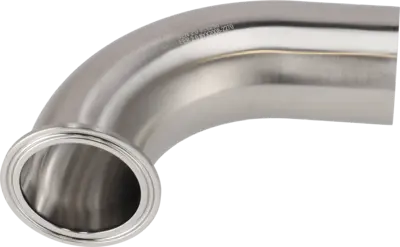

B2CMW-2-316L-PM - BPE TCXW 90 15RAEP/POL OD SF4
Manufacturer:Alfa Laval
Item number: 9634001932
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:4-5 days
  • Range: Bends
  • Product Model: Tri-Clover BPE Bends 90
  • Size: 2"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B2CMW
  • Item Weight: 0.12
Price:
Login to view price

Tax included

A: 120.70
B: 88.90
C: 88.90
OD/ID x t: 50.80/47.50 x 1.65
OD1/ID1 x t1: 50.80/47.50 x 1.65
