B2CMP-1 1/2-316L-PM

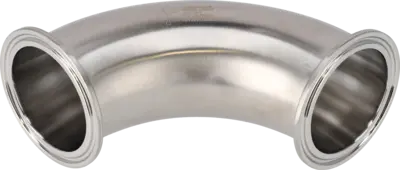

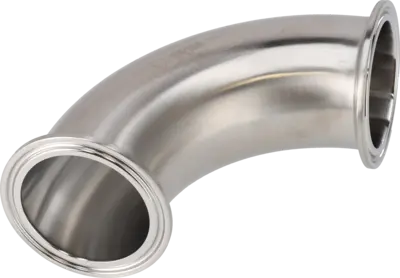

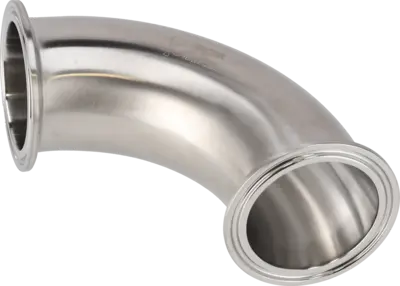

B2CMP-1 1/2-316L-PM - BPE TC 90 15RAEP/POL OD SF4
Manufacturer:Alfa Laval
Item number: 9634002831
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Delivery time:4-5 days
  • Range: Bends
  • Product Model: Tri-Clover BPE Bends 90
  • Size: 1.5"
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B2CMP
  • Item Weight: 0.24
Price:
Login to view price

Tax included

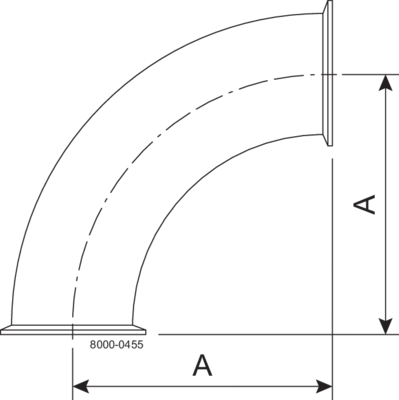

A: 69.90
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
